10 GOSUB 10000: REM INITIALIZE VARIABLES
20 GOSUB  5000: REM SET FOR COMPUTER TYPE
30 GOSUB  4000: REM INITIALIZE THE PORT
100 REM MAIN PROGRAM LOOP
110 GOSUB 1000: REM GET A DIGIT
120 GOSUB 2000: REM PRINT DIGIT TO SCREEN, UPDATING LAST DIGIT TIME
130 GOSUB 3000: REM WAIT FOR THAT TONE TO END
140 GOTO 100: REM CONTINUE MAIL LOOP

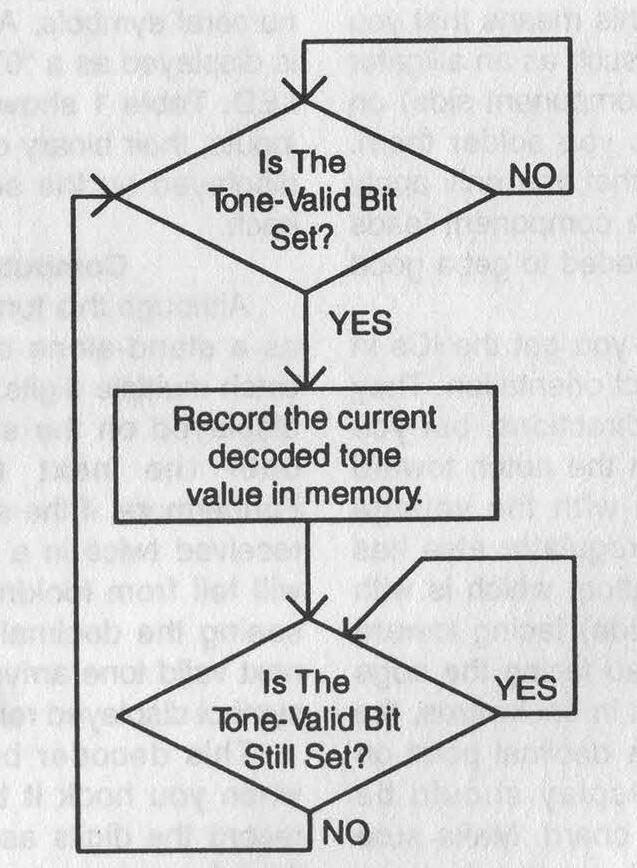

1000 IF PEEK(DREG) AND 16 THEN GOTO 1020
1010 GOTO 1000: REM LOOP UNTIL VALID BIT GOES HI.
1020 DTMF=PEEK(DREG) AND 15
1030 RETURN
2000 IF TIME-LAST > 180 THEN PRINT
2010 PRINT OUT$(DTMF);
2020 RETURN
3000 IF PEEK(DREG) AND 16 THEN GOTO 3000
3010 LAST=TIME
3020 RETURN
4000 POKE DIR, 0: REM SET ALL BITS TO INPUT
4010 RETURN
5000 IF (FRE(0)-(FRE(0)<0)*65536)<5000 THEN GOTO 5040

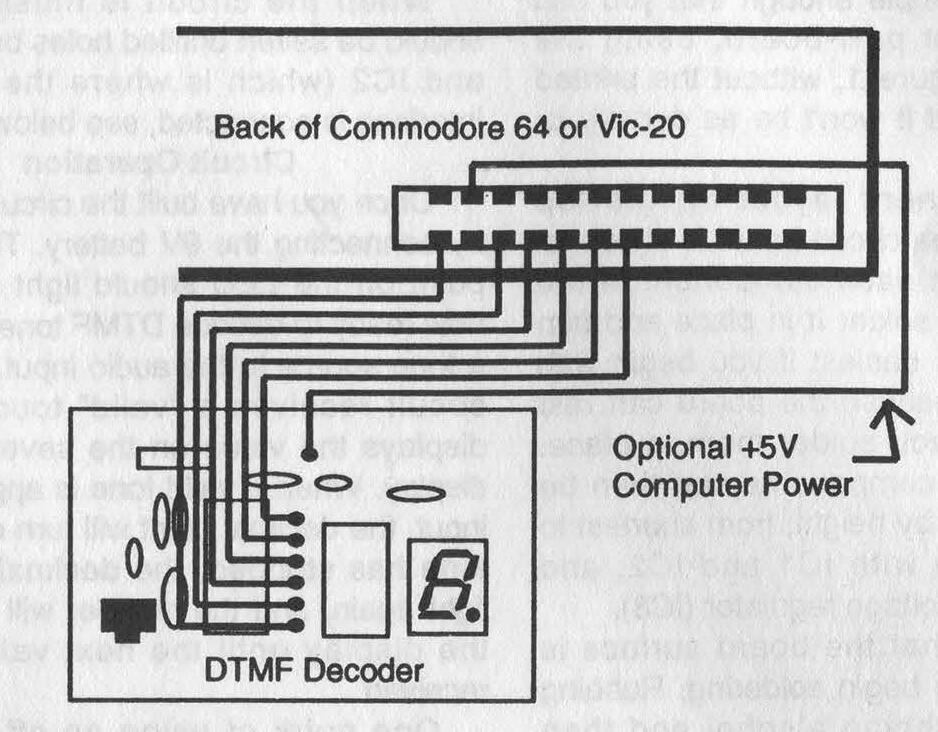

5010 DIR=56579: REM DATA DIRECTION REGISTER ADDRESS FOR COMMODORE 64
5020 DREG=56577: REM USER PORT DATA ADDRESS REGISTER FOR COMMODORE 64
5030 RETURN
5040 DIR=37138: REM USER PORT DATA ADDRESS REGISTER FOR VIC-20
5050 DREG=37136: REM USER PORT DATA ADDRESS REGISTER FOR VIC-20
5060 RETURN
10000 DIM OUT$(16): REM DIMESIONS OUTPUT SYMBOL ARRAY
10010 READ CODE,SYMBOL$
10020 OUT$(CODE)=SYMBOL$
10030 IF CODE <> 15 THEN GOTO 10010
10040 LAST=0: REM TIME LAST TONE ENDED
10050 DTMF=0: REM DECODED DTMF VALUE
10060 DREG=0: REM DATA ADDRESS REGISTER
10070 DIR=0: REM DATA DIRECTION ADDR. REG.
10080 RETURN
15000 REM DATA FOR EACH POSSIBLE DTMF INPUT AND IT'S CORRESPONDING SYMBOL
15010 DATA 0,"D",1,"1",2,"2",3,"3",4,"4",5,"5",6,"6",7,"7",8,"8",9,"9",10,"0"
15020 DATA 11,"*",12,"#",13,"A",14,"B",15,"C"
