HDMI Test Report

Overall Results:2 of 13 Tests Failed

Test Configuration Details
Device Description
HDMI Specification2.0
HDMI Test TypeTMDS Physical Layer Tests
Test ModeCompliance Mode
Test Session Details
Infiniium SW Version04.50.0008
Infiniium Model NumberDSOX93204A
Infiniium Serial NumberMY53180105
Application SW Version1.99.9027
Debug Mode UsedNo
Probe (Channel 1)Model: 1169A Serial: US44000259 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.2029E+000) Skew: Not Calibrated, Using Default Skew
Probe (Channel 2)Model: 1169A Serial: US49413460 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.0148E+000) Skew: Not Calibrated, Using Default Skew
Probe (Channel 3)Model: 1169A Serial: US49412951 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.2029E+000) Skew: Not Calibrated, Using Default Skew
Probe (Channel 4)Model: 1169A Serial: US49412941 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.1765E+000) Skew: Not Calibrated, Using Default Skew
Last Test Date2013-09-12 11:16:49 UTC -07:00

Summary of Results

Margin Thresholds
Warning< 2 %
Critical< 0 %

Pass# Failed# TrialsTest NameWorst ActualWorst MarginSpec Range
01HF1-8: D0 Mask Test (TP2_EQ)0.00050.0 % No Mask Failures
01HF1-2: D0 Rise Time53.112 ps25.0 % VALUE >= 42.500 ps
01HF1-2: D0 Fall Time54.452 ps28.1 % VALUE >= 42.500 ps
12HF1-2: Clock Rise Time70.301 ps-6.3 % VALUE >= 75.000 ps
12HF1-2: Clock Fall Time64.071 ps-14.6 % VALUE >= 75.000 ps
02HF1-7: Clock Jitter (TP2_EQ with Worst Case Skew +112ps)278 mTbit7.3 % VALUE <= 300 mTbit
02HF1-7: Clock Jitter (TP2_EQ with Worst Case Skew -112ps)285 mTbit5.0 % VALUE <= 300 mTbit
01HF1-1: VL Clock +2.781 V39.9 % 2.300 V <= VALUE <= 3.100 V
01HF1-1: VL Clock -2.758 V42.8 % 2.300 V <= VALUE <= 3.100 V
01HF1-4: Intra-Pair Skew - Clock93 mTbit19.0 % -150 mTbit <= VALUE <= 150 mTbit
01HF1-1: VL D0+2.826 V12.3 % 2.300 V <= VALUE <= 2.900 V
01HF1-1: VL D0-2.827 V12.2 % 2.300 V <= VALUE <= 2.900 V
01HF1-4: Intra-Pair Skew - Data Lane 0-3 mTbit49.0 % -150 mTbit <= VALUE <= 150 mTbit


Report Detail


HF1-8: D0 Mask Test (TP2_EQ) Reference: Test ID HF1-8
Test Summary: Pass Test Description: Confirm that the differential signal on each TMDS differential data pair has an “eye opening” (region of valid data) that meets or exceeds the limits on eye opening in the specification.
Test Limits:No Mask FailuresTotal # failures0.000
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Maximum Margin-600 fsMaximum Margin (Vertical)0.000000000000 VEye Width(ps)131.850Eye Height(mV)218.130Data Lane AD0Test Frequency(MHz)148.501Mask Moved(ps)600 m# Acquisitions Point16.000000000 MTbit(ps)168.348RightJitterData(Tbit)215 mLeftJitterData(Tbit)215 mRightJitterData(ps)36.270LeftJitterData(ps)36.270Differential Swing Voltage(V)1.176Transfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ.tf4
Trial 1
Trial 1: Total # failures

HF1-2: D0 Rise Time Reference: Test ID HF1-2
Test Summary: Pass Test Description: The transition time is defined as the time interval between the normalized 20% and 80% amplitude levels. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>= 42.500 psTransition Time53.112 ps
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency(MHz)148.490Data Lane AD0Upper Threshold(%)80.000Lower Threshold(%)20.000#Edge122.066000 kTransfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1

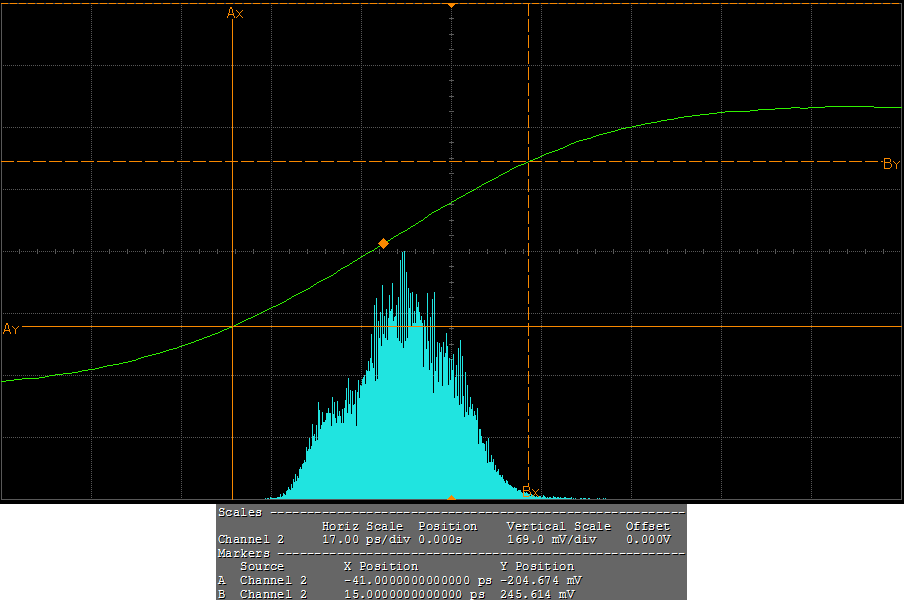

Trial 1: Transition Time

HF1-2: D0 Fall Time Reference: Test ID HF1-2
Test Summary: Pass Test Description: The transition time is defined as the time interval between the normalized 20% and 80% amplitude levels. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>= 42.500 psTransition Time54.452 ps
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency(MHz)148.490Data Lane AD0Upper Threshold(%)80.000Lower Threshold(%)20.000#Edge120.165000 kTransfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1

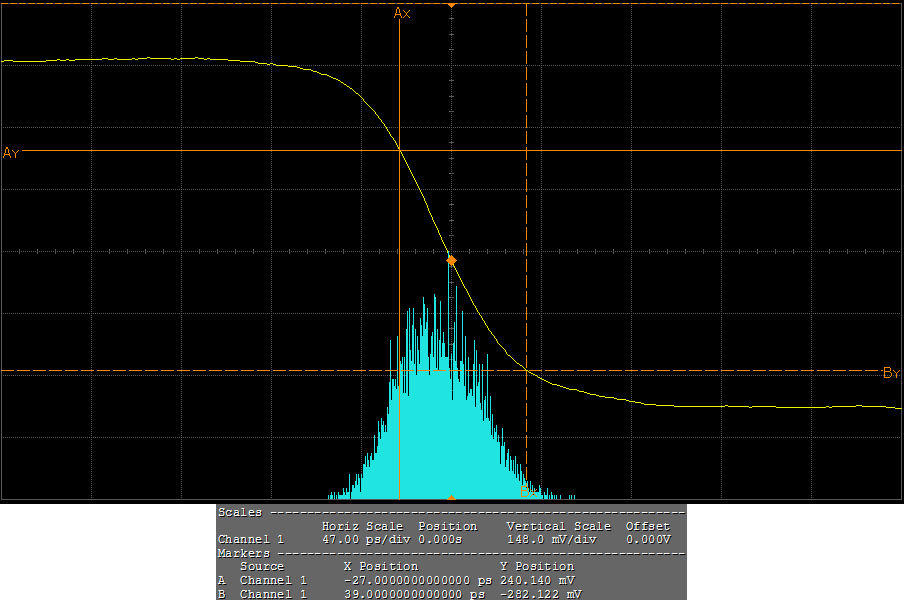

Trial 1: Transition Time

HF1-2: Clock Rise Time Reference: Test ID HF1-2
Test Summary: FAIL Test Description: 2 Channels Connection Model: The transition time is defined as the time interval between the normalized 20% and 80% amplitude levels. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>= 75.000 psRaw Clock Transition Time (Worst of 2 Trials)70.301 ps # Trials Run: 2 Worst Trial: Trial 1
Result Details:

Overall Summary + details of 2 worst trials
. TrialActual ValueMarginHDMIAutomationConfigTest Frequency(MHz)Upper Threshold(%)Lower Threshold(%)# EdgesTransfer Function File
Avg89.06 ps18.75 %
StdDev26.53 ps35.37 %
Range37.52 ps50.03 %
Min70.30 ps-6.265 %
Max107.8 ps43.76 %
Sum178.1 ps37.50 %
Trial 1 (Worst)70.301 ps-6.3%Timing C 3148.49980.00020.00011.001000 kC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 2107.821 ps43.8%Timing C 3148.49980.00020.00011.000000 kC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_n.tf4
Trial 1
Trial 1: Raw Clock Transition Time
Trial 2
Trial 2: Raw Clock Transition Time

HF1-2: Clock Fall Time Reference: Test ID HF1-2
Test Summary: FAIL Test Description: 2 Channels Connection Model: The transition time is defined as the time interval between the normalized 20% and 80% amplitude levels. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>= 75.000 psRaw Clock Transition Time (Worst of 2 Trials)64.071 ps # Trials Run: 2 Worst Trial: Trial 1
Result Details:

Overall Summary + details of 2 worst trials
. TrialActual ValueMarginHDMIAutomationConfigTest Frequency(MHz)Upper Threshold(%)Lower Threshold(%)# EdgesTransfer Function File
Avg89.00 ps18.67 %
StdDev35.25 ps47.00 %
Range49.86 ps66.47 %
Min64.07 ps-14.57 %
Max113.9 ps51.90 %
Sum178.0 ps37.33 %
Trial 1 (Worst)64.071 ps-14.6%Timing C 3148.49980.00020.00011.001000 kC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 2113.927 ps51.9%Timing C 3148.49980.00020.00011.000000 kC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_n.tf4
Trial 1
Trial 1: Raw Clock Transition Time
Trial 2
Trial 2: Raw Clock Transition Time

HF1-7: Clock Jitter (TP2_EQ with Worst Case Skew +112ps) Reference: Test ID HF1-7
Test Summary: Pass Test Description: 2 Channels Connection Model: TMDS differential clock jitter must not exceed 0.3*Tbit, relative to the ideal Recovery Clock. For compliance, the DUT should output > 340MHz for testing.
Test Limits:<= 300 mTbitClock Jitter (Worst of 2 Trials)278 mTbit # Trials Run: 2 Worst Trial: Trial 2
Result Details:

Overall Summary + details of 2 worst trials
. TrialActual ValueMarginHDMIAutomationConfigTP1 Differential Swing (V)Test Frequency(MHz)# EdgesTbit(ps)Clock Jitter(ps)Transfer Function File
Avg166.1 mTbit44.67 %
StdDev158.6 mTbit52.80 %
Range224.4 mTbit74.67 %
Min53.88 mTbit7.333 %
Max278.2 mTbit82.00 %
Sum332.1 mTbit89.33 %
Trial 154 mTbit82.0%Timing C 3827 m148.49916.000000000 M168.3529.070C:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 2 (Worst)278 mTbit7.3%Timing C 3825 m148.50016.000000000 M168.35046.840C:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1

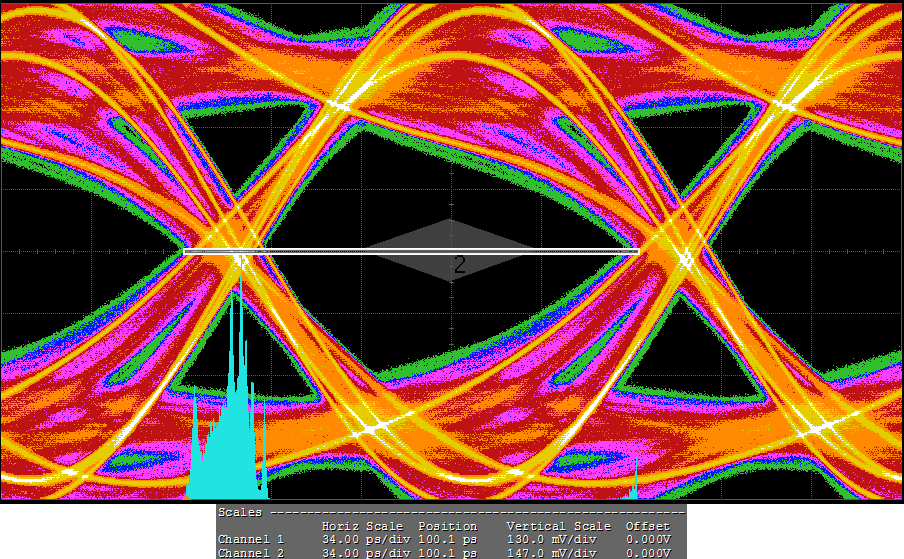

Trial 1: Clock Jitter
Trial 2
Trial 2: Clock Jitter

HF1-7: Clock Jitter (TP2_EQ with Worst Case Skew -112ps) Reference: Test ID HF1-7
Test Summary: Pass Test Description: 2 Channels Connection Model: TMDS differential clock jitter must not exceed 0.3*Tbit, relative to the ideal Recovery Clock. For compliance, the DUT should output > 340MHz for testing.
Test Limits:<= 300 mTbitClock Jitter (Worst of 2 Trials)285 mTbit # Trials Run: 2 Worst Trial: Trial 2
Result Details:

Overall Summary + details of 2 worst trials
. TrialActual ValueMarginHDMIAutomationConfigTP1 Differential Swing (V)Test Frequency(MHz)# EdgesTbit(ps)Clock Jitter(ps)Transfer Function File
Avg177.3 mTbit40.83 %
StdDev152.3 mTbit50.68 %
Range215.4 mTbit71.67 %
Min69.56 mTbit5.000 %
Max285.0 mTbit76.67 %
Sum354.6 mTbit81.67 %
Trial 170 mTbit76.7%Timing C 3827 m148.49916.000000000 M168.35211.710C:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_n.tf4
Trial 2 (Worst)285 mTbit5.0%Timing C 3825 m148.50016.000000000 M168.35047.980C:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_n.tf4
Trial 1
Trial 1: Clock Jitter
Trial 2
Trial 2: Clock Jitter

HF1-1: VL Clock + Reference: Test ID HF1-1
Test Summary: Pass Test Description: Confirm that the DC voltage levels on the HDMI link are within the specified limits for each TMDS signal.
Test Limits:[2.300 V to 3.100 V]VL2.781 V
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency148.439 MHz# Edges10.000000 kTransfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1

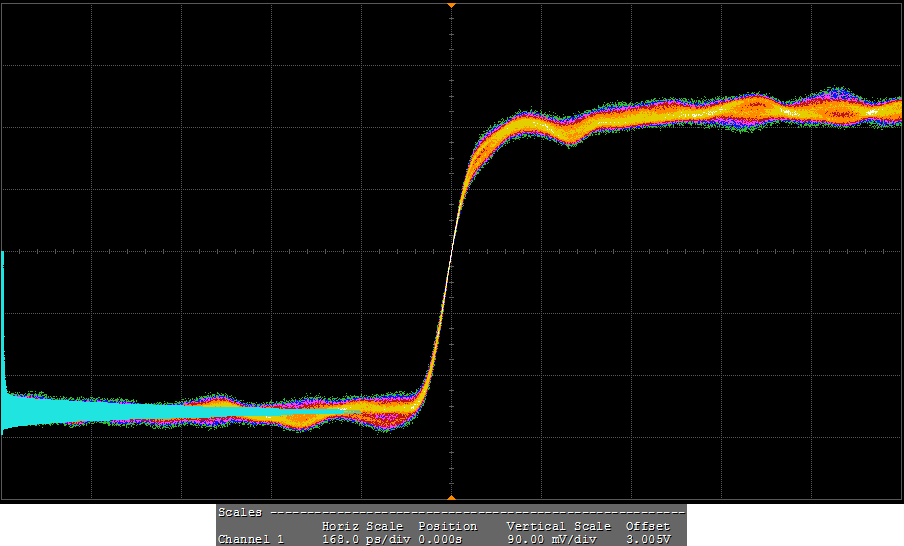

Trial 1: VL

HF1-1: VL Clock - Reference: Test ID HF1-1
Test Summary: Pass Test Description: Confirm that the DC voltage levels on the HDMI link are within the specified limits for each TMDS signal.
Test Limits:[2.300 V to 3.100 V]VL2.758 V
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency148.439 MHz# Edges10.000000 kTransfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1
Trial 1: VL

HF1-4: Intra-Pair Skew - Clock Reference: Test ID HF1-4
Test Summary: Pass Test Description: Confirm that any skew within any one differential data pair in the TMDS portion of the HDMI link does not exceed the limits in the specification.
Test Limits:[-150 mTbit to 150 mTbit]Clock Intra-Pair Skew93 mTbit
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency(MHz)148.439Clock Intra-Pair Skew(ps)15.590Transfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1

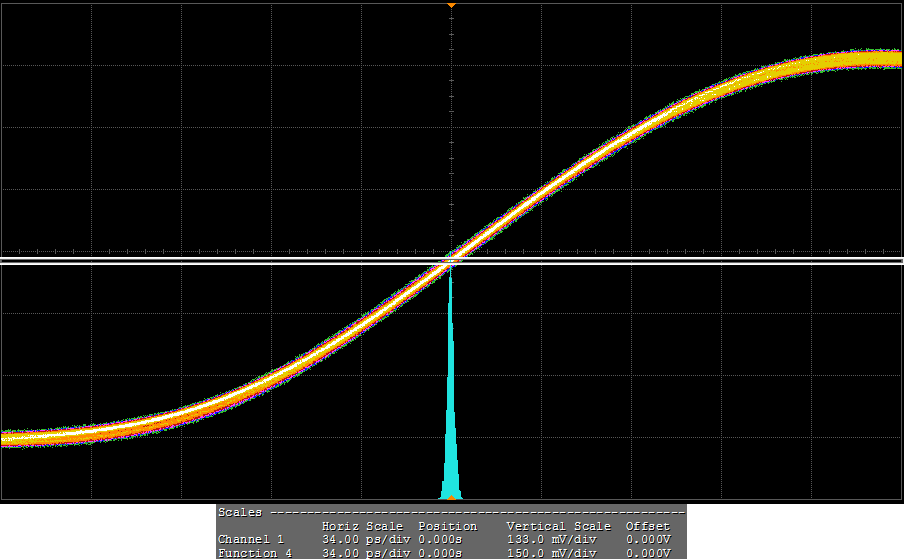

Trial 1: Clock Intra-Pair Skew

HF1-1: VL D0+ Reference: Test ID HF1-1
Test Summary: Pass Test Description: Confirm that the DC voltage levels on the HDMI link are within the specified limits for each TMDS signal.
Test Limits:[2.300 V to 2.900 V]VL2.826 V
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency148.504 MHz# Edges10.000000 kTransfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1
Trial 1: VL

HF1-1: VL D0- Reference: Test ID HF1-1
Test Summary: Pass Test Description: Confirm that the DC voltage levels on the HDMI link are within the specified limits for each TMDS signal.
Test Limits:[2.300 V to 2.900 V]VL2.827 V
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency148.499 MHz# Edges10.000000 kTransfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1

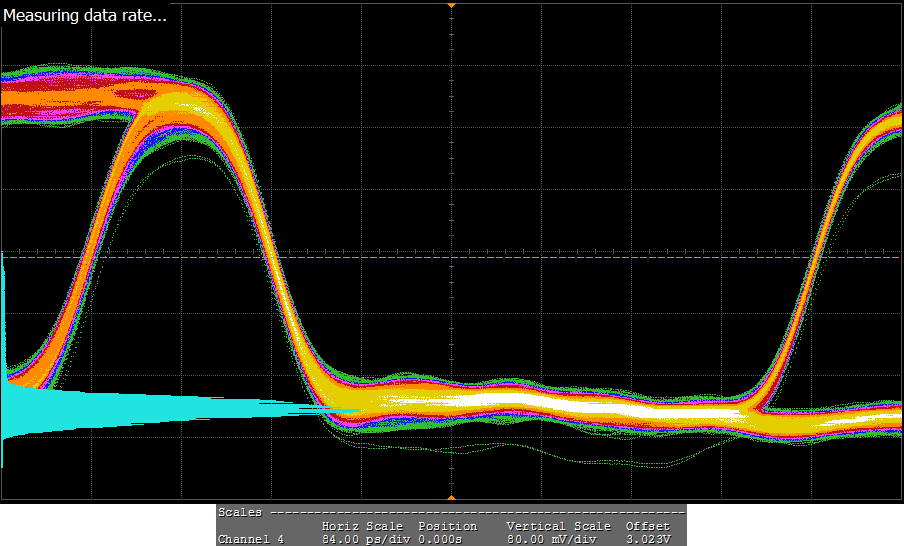

Trial 1: VL

HF1-4: Intra-Pair Skew - Data Lane 0 Reference: Test ID HF1-4
Test Summary: Pass Test Description: Confirm that any skew within any one differential data pair in the TMDS portion of the HDMI link does not exceed the limits in the specification.
Test Limits:[-150 mTbit to 150 mTbit]Data Intra-Pair Skew-3 mTbit
Result Details:
Result Details
HDMIAutomationConfigTiming C 3Test Frequency(MHz)148.499Data Intra-Pair Skew(ps)-500 mTransfer Function FileC:\ProgramData\Agilent\Infiniium\Apps\HDMIHEACTest\app\config\TransferFunction\Final\Final_N1080H04_cableembed_equ_skew_p.tf4
Trial 1

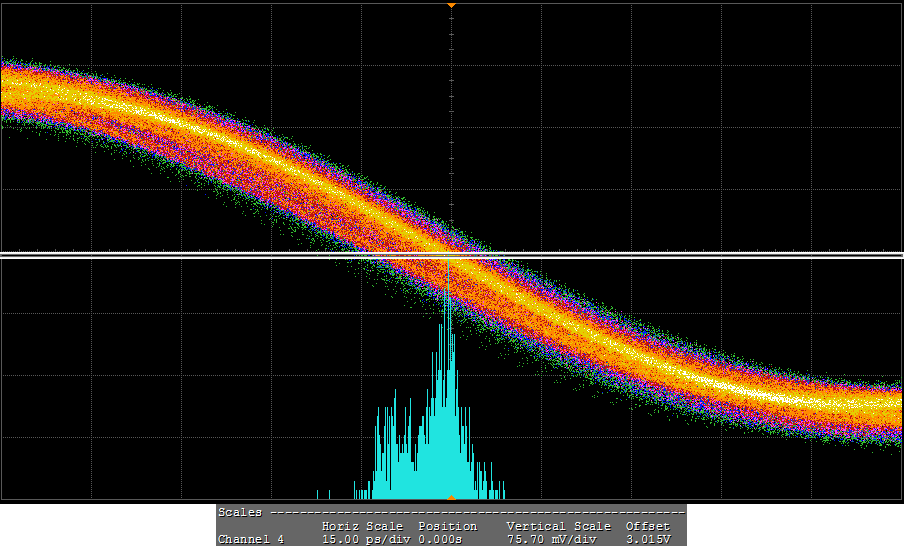

Trial 1: Data Intra-Pair Skew
