Written by [yAtEs] ------ REaP --- Reverse Engineering aND Programming --- Http://reap.tsx.org / to contact me email, Jamesluton@hotmail.com

Heya i've got nothing to do so i'll write this tut for removing the CD check on S.O.T.E

There are a few types of CD protections around, some hardcore

some not, this happens to be a simple check. Most commercial

software will allow you to install the whole game to

your harddrive and let you run it from there, but they usally

always ask for the CD, this is so you don't go installing on your

mates computer, i find this annoying so i remove the check

for my own purpose anyway.



Ok install the game with its maxium install option and wait about

20 mins if you have a 4x CD-ROM drive like me but i doubt you do ;),

anyways once the installation has finished remove your CD and place

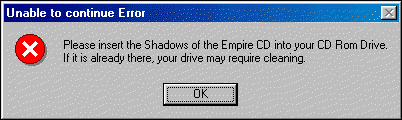

it on the floor or when ever you store your CDs. Now run the program

and you will see this message.

Ok this time set a breakpoint on messageboxa like so- Ctrl+D to activate

SoftICE then type BPX MESSAGEBOXA now exit SoftICE, rerun the program,

SoftICE will break just before the messagebox now press F12 to return to

the line after the API was called in the main exe code.



There are several ways to beat a standard check, you could trace on from

the message box until you hit a RET and find the CD check call or you

could use wd32asm to find where the msg box was called from a change

a jump.

K, we'll just use SoftICE. anyway once you have returned from that API

you will see the following code :-



00463D1F CALL [USER32!MessageBoxA]

00463D25 Push 01 <-- We are here

00463D27 CALL 004AA560

00463D2C ADD ESP,04

00463D2F POP EDI

00463D30 POP ESI

00463D31 RET

The theory is that we keep tracing(F10) until we hit a ret and are

returned to a line below a CALL,.. the CD-Check call, some times

this can be toally noped out or a jump above will determine to jump

it or not, blah blah

So lets keep tracing until we hit the RET....dum de dum da dum de dum

hey! when we hit the CALL 004AA560 the program ends :P , hum looks

like the program has called a exit procedure to stop the rest of the

code carrying on :P. ok lets rerun the program and when we get to the

call line, so that our little grey bar thing is over 00463D27 CALL 004AA560

lets try and skip this line...what ya mean how? :P well if you look at the

top right of the SoftICE screen its says EIP=00463D27 this is the next line

to execute..our exit call =:0->-< , so click up there and change it to

EIP=00463D2C, or if your unprivenged and have no working mouse or think

having a mouse is stupid in SoftICE you will have to type R EIP then

enter the number, anyway press F5 to exit SoftICE, and wang bang lalal

the game runs!



Ok now its time to patch the game, so how would we go about doing this?

well we could nop out that Call 004AA560 which calls the exit routine,

but naw that would be stupid because it would call a error msg box then

run the game, so lets trace out the call and see what we can see :),

So when you get to that call that exits, um.. Call 004AA560, set the EIP

to jump over it like before and keeping tracing(F10) until we hit the RET

and return from the 'CD Check' call, now you should see.



0048FF09 CALL 00463C70

0048FF0E XOR EDI,EDI <- We are here

0048FF10 CALL [008C44C4]

0048FF16 CMP EDI,EAX



Now you can see we have returned from the call above which was the 'CD check

error you haven't the cd thingy' so now we can simply nop out that call, OR!

or? or scroll up abit, make sure your not half through typing anything then

click in the code window and scroll up a few lines, or press Pgup/PgDwn then

go setup your mouse for SI ;), anyway now you will see:-

0048FEF5 JNZ 0048FF0E <- Hey a Jump to ----

0048FEF7 PUSH 0073B5A8

0048FEFC PUSH 006F35A0

0048FF01 CALL 004AA350

0048FF06 ADD ESP,08

0048FF09 CALL 00463C70

0048FF0E XOR EDI,EDI <- We are here / -----

0048FF10 CALL [008C44C4]

0048FF16 CMP EDI,EAX



Now can you see two ways to kill the check?, well we know that if CALL 463C70

is executed then we get a NO CD error and exit, so we can either NOP out that

call or we can change the JNZ 0048FF0E to JMP 0048FF0E , because that will jump

straight over the nasty call, hmm about time i brought this tut to an end, its

too big ;), SOOoo lets patch that JNZ because its quick for me :P, we need

the file offset so use a program like ICZ's Adress->file offset thing from

www.crackstore.com or search for the bytes in a hex ed, make sure you have

CODE ON in SI to view the bytes, i'm just gonna search for em, its

0048FEF5 7517 ......JNZ 0048FF0E <- Hey a Jump to ----

0048FEF7 68A8B57300 PUSH 0073B5A8



so with a hex ed search for '751768A8', oh yer i forgot to mention

which file :P, hehe, um its not SOTE.exe you know why? good i'm off then,

i mean, go back into SoftICE to the JNZ and you will see in the SoftICE window

-------------------SHADOWS!.text+0008EEF3-------------------

which means we are debugging in a file called Shadows, could be an EXE or

DLL, so do a search in your SOTE directory for a file called SHADOWS, right

theres a doc file and some other stuff but its mostly like to be the

x:\xxxx\Sdata\Shadows.exe so go into your sdata dir and patch the shadows file

search for '751768A8' and change it to EB17 we search for more than 7517 because

theres mostly likely to be more than one of em, anyway 75 which is JNZ to EB

which is JMP and its done, lalal trlal dum de dum and save, click, run, play

laterz peepz.
