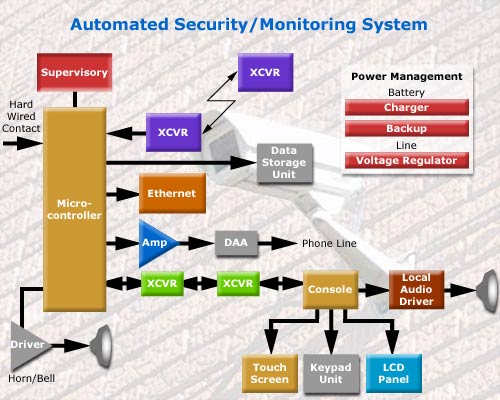

System Overview System Diagram

Homes without a security monitoring system have shown statistically a higher rate of burglary. Consumers are increasingly finding the need to protect their family and homes with automated security monitoring systems. Units are also becoming more reliable, adding more features, and entering a price point that allows more consumers to consider a security system. National provides solutions that are both high performance and cost-effective.

Component Highlights
* Touch screen controllers - 4-wire resistive controllers sample and drive the touch screen without external hardware.
* Microcontrollers - COP8® controllers are available with features such as 16k masked ROM and true in-system programmable Flash memory, ideal for real-time data collection and processing and remote monitoring of multiple sensor outputs.
* Transceivers - BUS LVDS technology addresses high data rates of more than 1 Gbps.
* Wireless transceivers - Simply Blue modules have high integration and high-level commands to effectively remove the need for BluetoothTM expertise.
* Audio amplifier - mono Boomer® amplifiers provide high quality audio output with low power consumption in space-saving designs.
* Operational amplifier - low supply voltage, low-noise devices provide high- quality signal processing.
* Battery charger - select from analog controller and microcontroller-based chargers with varying levels of integration and programmability.

Application Resources
  • APP NOTE: COP800 Based Automated Security/Monitoring
  • Analog U - Low Speed and Low Power Amplifiers
  • LVDS Design Guide
  • Related Diagrams
