Digital Still Camera

System Overview	System Diagram
Digital Still Cameras (DSC) take real world analog and convert it to digital information through the use of image sensors and processors. Integrated memory and connectivity modules allow easy sharing of digital images via Internet and cellular networks. DSCs feature multiple file format support, optical/digital zooms, and audio. Battery management devices allow colorful LCD displays and longer operation. Recent technology advances have made DSCs cost-friendly and readily available for consumers. Component Highlights * CMOS Image sensors - high-performance, low-power sensors are capable of capturing still and motion images and converting them to a digital data stream. * Amplifiers in Mic - miniaturized packaging and new amplifier IC design merge in the innovative amplifier within the ECM. * Audio amplifiers - small stereo Boomer® amplifier maximizes output power. * Audio codec - provides a high-quality audio path and includes the analog-intensive functions of the AC97 Rev 2 architecture. * White LED driver - efficient, low noise, simple to drive, and produce brightness matching and color uniformity. * Battery charger - solutions are available for common chemistries, using analog charger controllers, microcontroller chargers, and fully integrated devices with customization available. * LDO, Buck and Boost switching regulators - high-power density, high-efficiency converters extend battery life.
Related Diagrams

System Overview

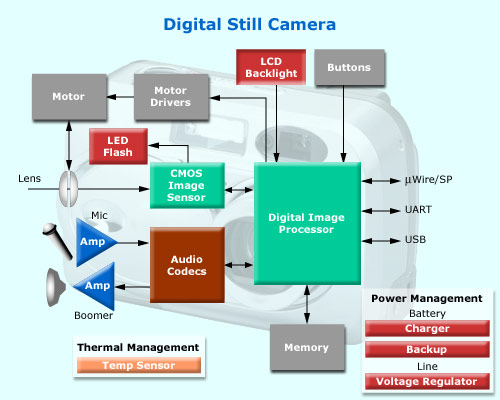

System Diagram

Digital Still Cameras (DSC) take real world analog and convert it to digital information through the use of image sensors and processors. Integrated memory and connectivity modules allow easy sharing of digital images via Internet and cellular networks. DSCs feature multiple file format support, optical/digital zooms, and audio. Battery management devices allow colorful LCD displays and longer operation. Recent technology advances have made DSCs cost-friendly and readily available for consumers.

Component Highlights

* CMOS Image sensors - high-performance, low-power sensors are capable of capturing still and motion images and converting them to a digital data stream.
* Amplifiers in Mic - miniaturized packaging and new amplifier IC design merge in the innovative amplifier within the ECM.
* Audio amplifiers - small stereo Boomer® amplifier maximizes output power.
* Audio codec - provides a high-quality audio path and includes the analog-intensive functions of the AC97 Rev 2 architecture.
* White LED driver - efficient, low noise, simple to drive, and produce brightness matching and color uniformity.
* Battery charger - solutions are available for common chemistries, using analog charger controllers, microcontroller chargers, and fully integrated devices with customization available.
* LDO, Buck and Boost switching regulators - high-power density, high-efficiency converters extend battery life.
