National e20a Package Folder: 20L LCC, 0.35 x 0.35 x 0.07inch body size

National e20a Package

20L LCC, 0.35 x 0.35 x 0.07inch body size

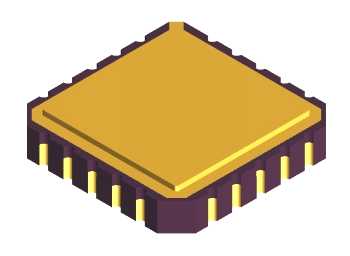

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LCC Selection Guide

Body Size
	Wide Nom.:	0.35	in
	Long Nom.:	0.35	in
	Thickness:	0.07	in

Lead Frame
	Material:	N/A
	Lead Finish:	N/A
	Pitch:	0.05	in

Packaging Mechanical Drawing

e20a Mechanical Drawing (57 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
