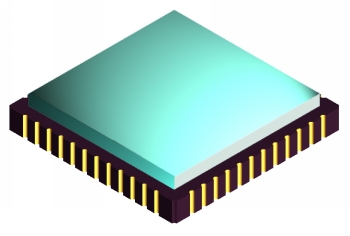

National ea48a Package

48L LCC, 560.00 x 560.00 x 102.00 body size

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LCC Selection Guide

Body Size
	Wide Nom.:	560.00	mm
	Long Nom.:	560.00	mm
	Thickness:	102.00	mm

Lead Frame
	Material:	N/A
	Lead Finish:	N/A
	Pitch:	40	mm

Packaging Mechanical Drawing

ea48a Mechanical Drawing (60 Kbytes)
View Online
Download
Receive via Email
