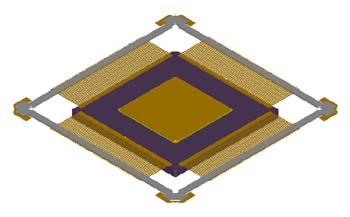

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 1460.00 | mm | |
| Long Nom.: | 1460.00 | mm | |
| Thickness: | 115.00 | mm | |
| Lead Frame | |||
| Material: | N/A | ||
| Lead Finish: | GOLD | ||
| Pitch: | 20 | mm | |
| el256b Mechanical Drawing (57 Kbytes) |  View Online |
