National j08a Package Folder: 8L CERDIP, 256.00 x 400.00 x 160.00 body size

National j08a Package

8L CERDIP, 256.00 x 400.00 x 160.00 body size

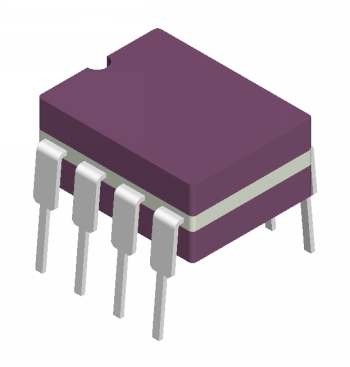

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing CERDIP Selection Guide

Body Size
	Wide Nom.:	256.00	mm
	Long Nom.:	400.00	mm
	Thickness:	160.00	mm

Lead Frame
	Material:	N/A
	Lead Finish:	N/A
	Pitch:	100	mm

Packaging Mechanical Drawing

j08a Mechanical Drawing (75 Kbytes)
View Online
Download
Receive via Email

[Information as of 25-Aug-2003]
