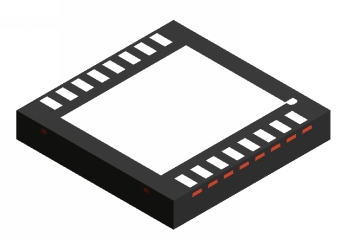

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic LLP C 6 CU A
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 5.00 | mm | |
| Long Nom.: | 5.00 | mm | |
| Thickness: | 0.80 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | SN/PD | ||
| Pitch: | 0.5 | mm | |
| lda16a Mechanical Drawing (38 Kbytes) |  View Online |
