National ldb06a Package Folder: 6L LLP, 2.20 x 2.50 x 0.75mm body size

National ldb06a Package

6L LLP, 2.20 x 2.50 x 0.75mm body size

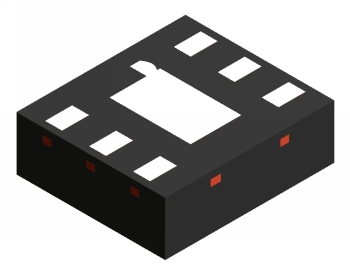

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LLP Selection Guide

Body Size
	Wide Nom.:	2.20	mm
	Long Nom.:	2.50	mm
	Thickness:	0.75	mm

Lead Frame
	Material:	CU A194
	Lead Finish:	SN/PB
	Pitch:	0.65	mm

Packaging Mechanical Drawing

ldb06a Mechanical Drawing (59 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
