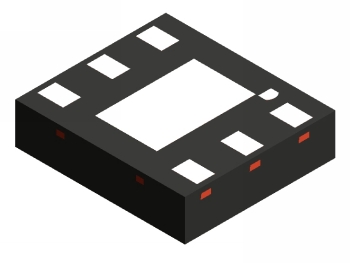

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec:
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 2.92 | mm | |
| Long Nom.: | 3.29 | mm | |
| Thickness: | 0.75 | mm | |
| Lead Frame | |||
| Material: | CU A194 | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 0.95 | mm | |
| lde06a Mechanical Drawing (39 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
