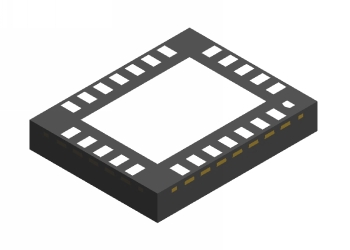

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec:
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 4.00 | mm | |
| Long Nom.: | 5.00 | mm | |
| Thickness: | 0.75 | mm | |
| Lead Frame | |||
| Material: | Copper | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 0.5 | mm | |
| lqa24a Mechanical Drawing (44 Kbytes) |  View Online |
