National lqb08a Package

8L LLP, 2.00 x 2.00 x 0.80mm body size

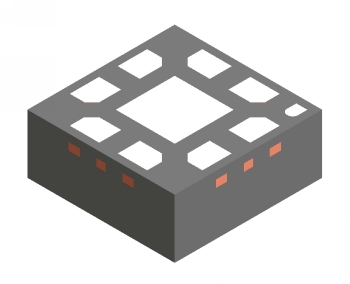

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LLP Selection Guide

Body Size
	Wide Nom.:	2.00	mm
	Long Nom.:	2.00	mm
	Thickness:	0.80	mm

Lead Frame
	Material:	COPPER
	Lead Finish:	Sn/Pb
	Pitch:	0.65	mm

Packaging Mechanical Drawing

lqb08a Mechanical Drawing (58 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
