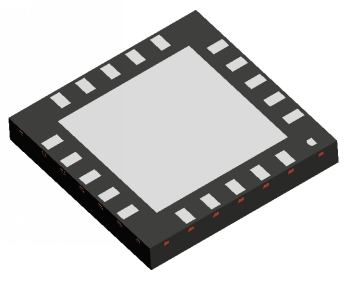

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic LLP A 20 CU
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 6.00 | mm | |
| Long Nom.: | 6.00 | mm | |
| Thickness: | 0.80 | mm | |
| Lead Frame | |||
| Material: | CU A194 | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 0.8 | mm | |
| lqc20b Mechanical Drawing (40 Kbytes) |  View Online |
