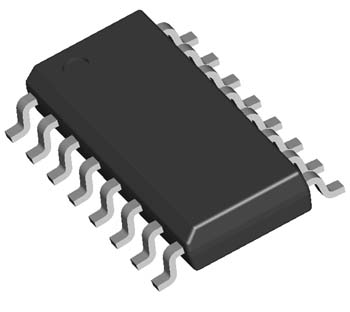

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: MS-012-AC
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 154.00 | mm | |
| Long Nom.: | 390.00 | mm | |
| Thickness: | 57.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 50 | mm | |
| m16a Mechanical Drawing (45 Kbytes) |  View Online |
