National m24d Package Folder: 24L SOP EIAJ TYPE II, 5.30 x 15.24 x 2.20mm body size

National m24d Package

24L SOP EIAJ TYPE II, 5.30 x 15.24 x 2.20mm body size

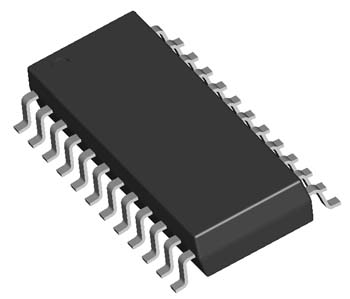

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing SOP EIAJ TYPE II Selection Guide

Body Size
	Wide Nom.:	5.30	mm
	Long Nom.:	15.24	mm
	Thickness:	2.20	mm

Lead Frame
	Material:	COPPER
	Lead Finish:	85/15 Sn/Pb
	Pitch:	1.27	mm

Packaging Mechanical Drawing

m24d Mechanical Drawing (34 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
