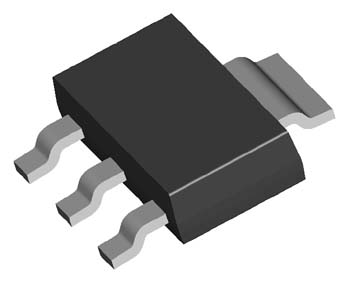

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 140.00 | mm | |
| Long Nom.: | 256.00 | mm | |
| Thickness: | 63.00 | mm | |
| Lead Frame | |||
| Material: | Cu 151 | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 90 | mm | |
| ma04a Mechanical Drawing (53 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
