National ma05c Package Folder: 5L SOT-223, 3.56 x 6.50 x 1.60mm body size

National ma05c Package

5L SOT-223, 3.56 x 6.50 x 1.60mm body size

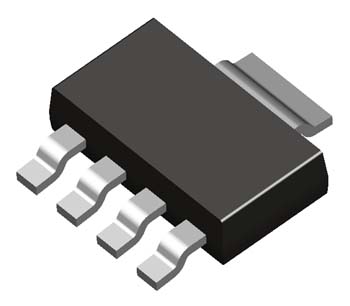

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing SOT-223 Selection Guide

Body Size
	Wide Nom.:	3.56	mm
	Long Nom.:	6.50	mm
	Thickness:	1.60	mm

Lead Frame
	Material:	KFC Cu
	Lead Finish:	85/15 Sn/Pb
	Pitch:	1.5	mm

Packaging Mechanical Drawing

ma05c Mechanical Drawing (63 Kbytes)
View Online
Download
Receive via Email
