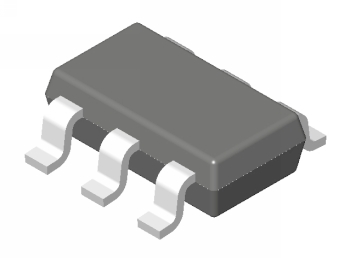

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 1.60 | mm | |
| Long Nom.: | 2.90 | mm | |
| Thickness: | 0.87 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | 0.95 | mm | |
| mk06a Mechanical Drawing (84 Kbytes) |  View Online |
