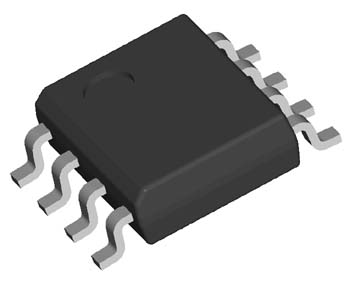

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec:
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 0.19 | in | |
| Long Nom.: | 0.15 | in | |
| Thickness: | 0.06 | in | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | .050 | in | |
| mra08a Mechanical Drawing (57 Kbytes) |  View Online |
