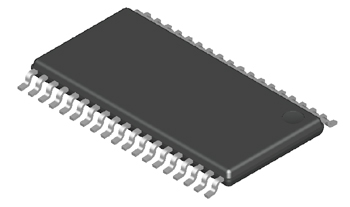

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
EIAJ Spec: Plastic TSSOP EXP PA |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 6.10 | mm | |
| Long Nom.: | 12.50 | mm | |
| Thickness: | 0.90 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 0.65 | mm | |
| mte38 Mechanical Drawing (42 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
