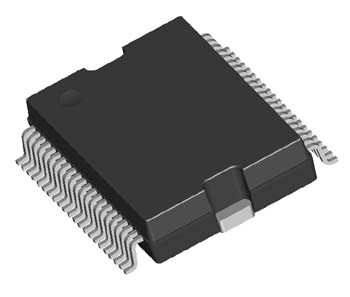

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 11.00 | mm | |
| Long Nom.: | 15.90 | mm | |
| Thickness: | 3.30 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 0.65 | mm | |
| mwc44a Mechanical Drawing (82 Kbytes) |  View Online |
