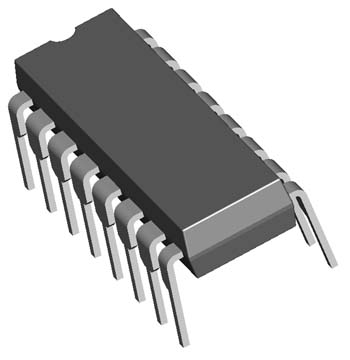

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
EIAJ Spec: |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 0.30 | in | |
| Long Nom.: | 0.75 | in | |
| Thickness: | 0.13 | in | |
| Lead Frame | |||
| Material: | Copper | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | .100 | in | |
| n16e Mechanical Drawing (37 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
