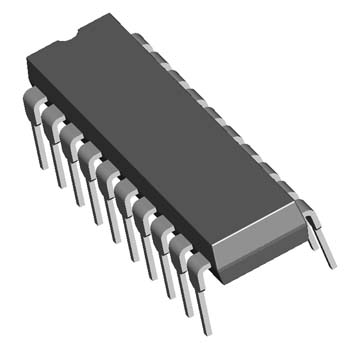

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: MS-001-AD
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 260.00 | mm | |
| Long Nom.: | 1026.50 | mm | |
| Thickness: | 130.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 100 | mm | |
| n20a Mechanical Drawing (43 Kbytes) |  View Online |
