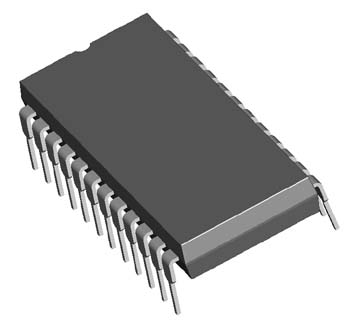

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 0.54 | in | |
| Long Nom.: | 1.26 | in | |
| Thickness: | 0.16 | in | |
| Lead Frame | |||
| Material: | Cu 194 | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 0.1000 | in | |
| n24a Mechanical Drawing (50 Kbytes) |  View Online |
