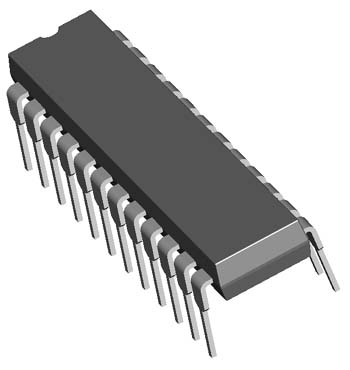

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic MDIP B 24 CO
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 280.00 | mm | |
| Long Nom.: | 1260.00 | mm | |
| Thickness: | 130.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | 100 | mm | |
| n24d Mechanical Drawing (30 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
