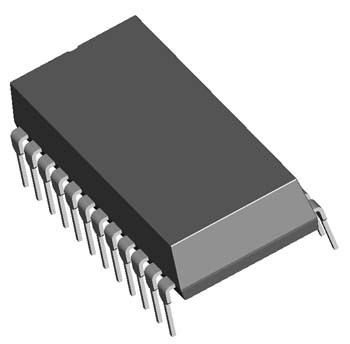

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 540.00 | mm | |
| Long Nom.: | 1250.00 | mm | |
| Thickness: | 225.00 | mm | |
| Lead Frame | |||
| Material: | Cu 194 | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 100 | mm | |
| na24f Mechanical Drawing (36 Kbytes) |  View Online |
