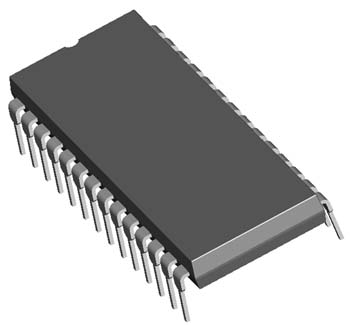

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: MS-011
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 529.50 | mm | |
| Long Nom.: | 1426.50 | mm | |
| Thickness: | 145.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 100 | mm | |
| na28f Mechanical Drawing (41 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
