National sga25a Package

25L SHELLOP, 4.17 x 4.17 x 0.82mm body size

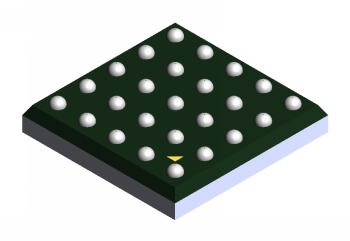

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing SHELLOP Selection Guide

Body Size
	Wide Nom.:	4.17	mm
	Long Nom.:	4.17	mm
	Thickness:	0.82	mm

Lead Frame
	Material:	N/A
	Lead Finish:	N/A
	Pitch:	0.8	mm

Packaging Mechanical Drawing

sga25a Mechanical Drawing (39 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
