National slb128a Package

128L LAMINATE CSP, 10.00 x 10.00 x 1.00mm body size

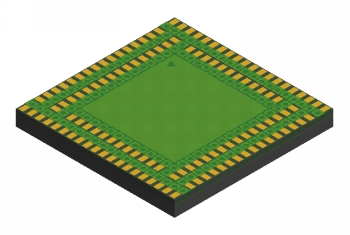

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LAMINATE CSP Selection Guide

Body Size
	Wide Nom.:	10.00	mm
	Long Nom.:	10.00	mm
	Thickness:	1.00	mm

Lead Frame
	Material:	BT Substra
	Lead Finish:	Ni/Au
	Pitch:	0.5	mm

Packaging Mechanical Drawing

slb128a Mechanical Drawing (55 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
