National slb24a Package Folder: 24L LAMINATE CSP, 3.50 x 4.50 x 1.00mm body size

National slb24a Package

24L LAMINATE CSP, 3.50 x 4.50 x 1.00mm body size

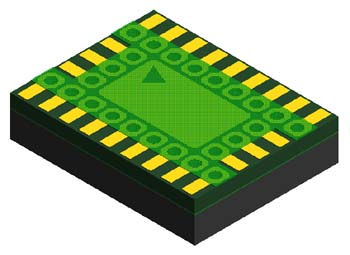

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LAMINATE CSP Selection Guide

Body Size
	Wide Nom.:	3.50	mm
	Long Nom.:	4.50	mm
	Thickness:	1.00	mm

Lead Frame
	Material:	N/A
	Lead Finish:	Gold
	Pitch:	0.5mm	mm

Packaging Mechanical Drawing

slb24a Mechanical Drawing (54 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
