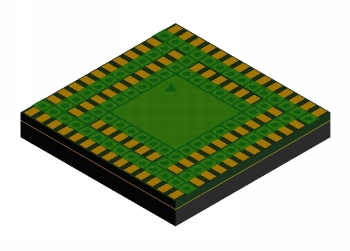

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: MO-208
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 280.00 | mm | |
| Long Nom.: | 280.00 | mm | |
| Thickness: | 40.00 | mm | |
| Lead Frame | |||
| Material: | BT | ||
| Lead Finish: | Ni/Au | ||
| Pitch: | 19.7 | mm | |
| slb80a Mechanical Drawing (56 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
