National slc49a Package Folder: 49L FBGA, 7.00 x 7.00 x 1.40mm body size

National slc49a Package

49L FBGA, 7.00 x 7.00 x 1.40mm body size

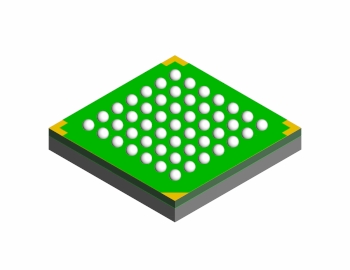

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing FBGA Selection Guide

Body Size
	Wide Nom.:	7.00	mm
	Long Nom.:	7.00	mm
	Thickness:	1.40	mm

Lead Frame
	Material:	BT
	Lead Finish:	Ni/Au
	Pitch:	0.8	mm

Packaging Mechanical Drawing

slc49a Mechanical Drawing (59 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
