National sld24a Package

24L LAMINATE TCSP, 3.50 x 4.50 x 0.80mm body size

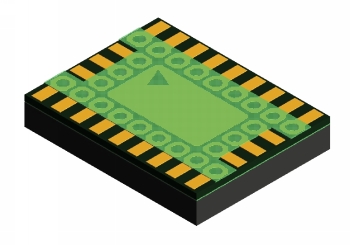

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LAMINATE TCSP Selection Guide

Body Size
	Wide Nom.:	3.50	mm
	Long Nom.:	4.50	mm
	Thickness:	0.80	mm

Lead Frame
	Material:	BT
	Lead Finish:	Ni/Au
	Pitch:	0.5	mm

Packaging Mechanical Drawing

sld24a Mechanical Drawing (45 Kbytes)
View Online
Download
Receive via Email
