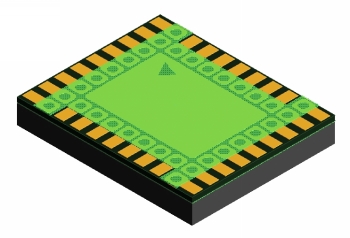

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec:
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 4.50 | mm | |
| Long Nom.: | 5.50 | mm | |
| Thickness: | 0.80 | mm | |
| Lead Frame | |||
| Material: | BT | ||
| Lead Finish: | Ni/Au | ||
| Pitch: | .5 | mm | |
| sld32a Mechanical Drawing (45 Kbytes) |  View Online |
