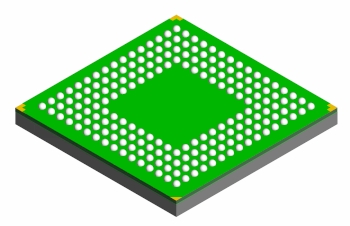

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 9.00 | mm | |
| Long Nom.: | 9.00 | mm | |
| Thickness: | 1.00 | mm | |
| Lead Frame | |||
| Material: | BT | ||
| Lead Finish: | Ni/Au | ||
| Pitch: | 0.5 | mm | |
| slh192a Mechanical Drawing (67 Kbytes) |  View Online |
