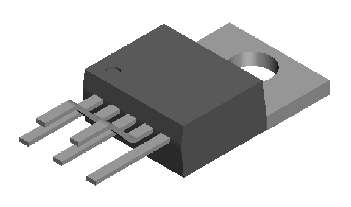

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: TO-220-AB
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 400.00 | mm | |
| Long Nom.: | 590.00 | mm | |
| Thickness: | 180.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 67 | mm | |
| ta05f Mechanical Drawing (48 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
