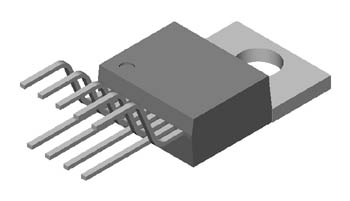

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic TO 220 B 11
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 400.00 | mm | |
| Long Nom.: | 590.00 | mm | |
| Thickness: | 180.00 | mm | |
| Lead Frame | |||
| Material: | TAMAC 2 C | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 38 | mm | |
| ta09a Mechanical Drawing (82 Kbytes) |  View Online |
