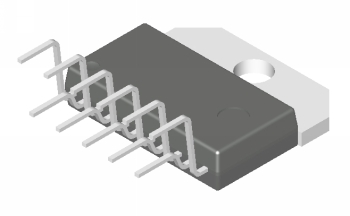

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 788.00 | mm | |
| Long Nom.: | 689.00 | mm | |
| Thickness: | 177.00 | mm | |
| Lead Frame | |||
| Material: | TAMAC 2 C | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | 67 | mm | |
| te11a Mechanical Drawing (75 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
