National ubd316a Package

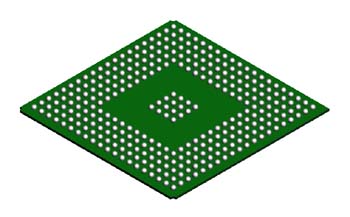

316L PBGA, 27.00 x 27.00 x 2.13mm body size

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing PBGA Selection Guide

Body Size
	Wide Nom.:	27.00	mm
	Long Nom.:	27.00	mm
	Thickness:	2.13	mm

Lead Frame
	Material:	BT
	Lead Finish:	SN/PB
	Pitch:	1.27	mm

Packaging Mechanical Drawing

ubd316a Mechanical Drawing (76 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
