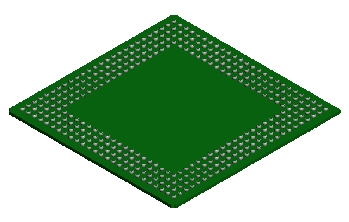

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic PBGA A 481 B
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 35.00 | mm | |
| Long Nom.: | 35.00 | mm | |
| Thickness: | 2.33 | mm | |
| Lead Frame | |||
| Material: | N/A | ||
| Lead Finish: | N/A | ||
| Pitch: | 1.27 | mm | |
| uce352a Mechanical Drawing (73 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
