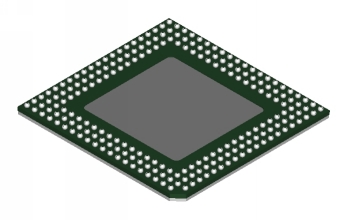

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: MO-151
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 27.00 | mm | |
| Long Nom.: | 27.00 | mm | |
| Thickness: | 1.27 | mm | |
| Lead Frame | |||
| Material: | N/A | ||
| Lead Finish: | Au | ||
| Pitch: | 1.27 | mm | |
| ucm215a Mechanical Drawing (55 Kbytes) |  View Online |
