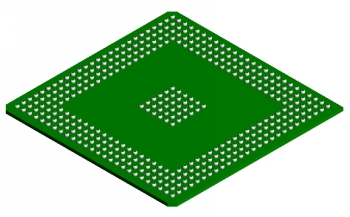

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic TEPBGA A 481
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 35.00 | mm | |
| Long Nom.: | 35.00 | mm | |
| Thickness: | 2.38 | mm | |
| Lead Frame | |||
| Material: | BT EPOXY | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | 1.27 | mm | |
| ufh388a Mechanical Drawing (76 Kbytes) |  View Online |
