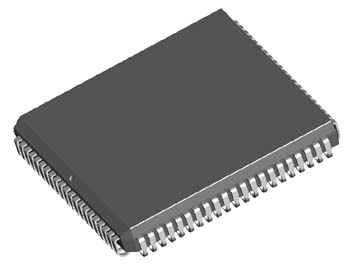

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
EIAJ Spec: |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 1.15 | in | |
| Long Nom.: | 1.15 | in | |
| Thickness: | 0.15 | in | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | SN/PB | ||
| Pitch: | .050 | in | |
| v84a Mechanical Drawing (47 Kbytes) |  View Online |
