National vev64a Package

64L LQFP, 10.00 x 10.00 x 1.40mm body size

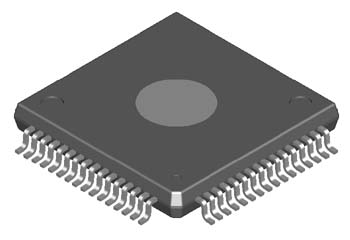

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LQFP Selection Guide

Body Size
	Wide Nom.:	10.00	mm
	Long Nom.:	10.00	mm
	Thickness:	1.40	mm

Lead Frame
	Material:	COPPER
	Lead Finish:	85/15 Sn/Pb
	Pitch:	0.5	mm

Packaging Mechanical Drawing

vev64a Mechanical Drawing (51 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
