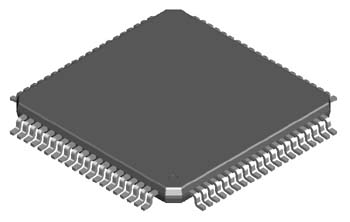

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: MS-026-ADD
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 12.00 | mm | |
| Long Nom.: | 12.00 | mm | |
| Thickness: | 1.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 0.5 | mm | |
| vhb80a Mechanical Drawing (51 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
