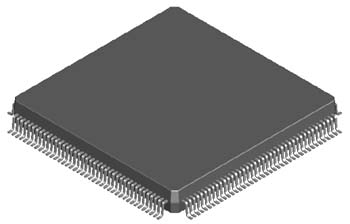

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 28.00 | mm | |
| Long Nom.: | 28.00 | mm | |
| Thickness: | 3.40 | mm | |
| Lead Frame | |||
| Material: | Cu 7025 | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 0.6500 | mm | |
| vul160a Mechanical Drawing (47 Kbytes) |  View Online |
