National w24b Package Folder: 24L CERPACK, 0.37 x 0.37 x 0.09inch body size

National w24b Package

24L CERPACK, 0.37 x 0.37 x 0.09inch body size

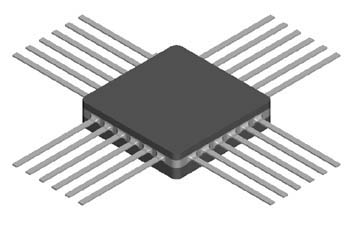

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing CERPACK Selection Guide

Body Size
	Wide Nom.:	0.37	in
	Long Nom.:	0.37	in
	Thickness:	0.09	in

Lead Frame
	Material:	N/A
	Lead Finish:	N/A
	Pitch:	0.05	in

Packaging Mechanical Drawing

w24b Mechanical Drawing (29 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
