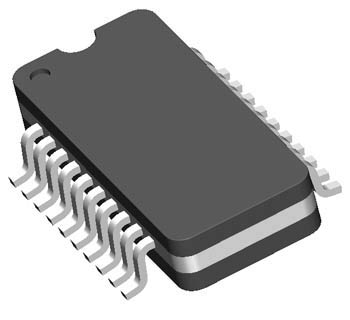

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 155.00 | mm | |
| Long Nom.: | 342.00 | mm | |
| Thickness: | 70.00 | mm | |
| Lead Frame | |||
| Material: | N/A | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 25 | mm | |
| wg20b Mechanical Drawing (58 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
